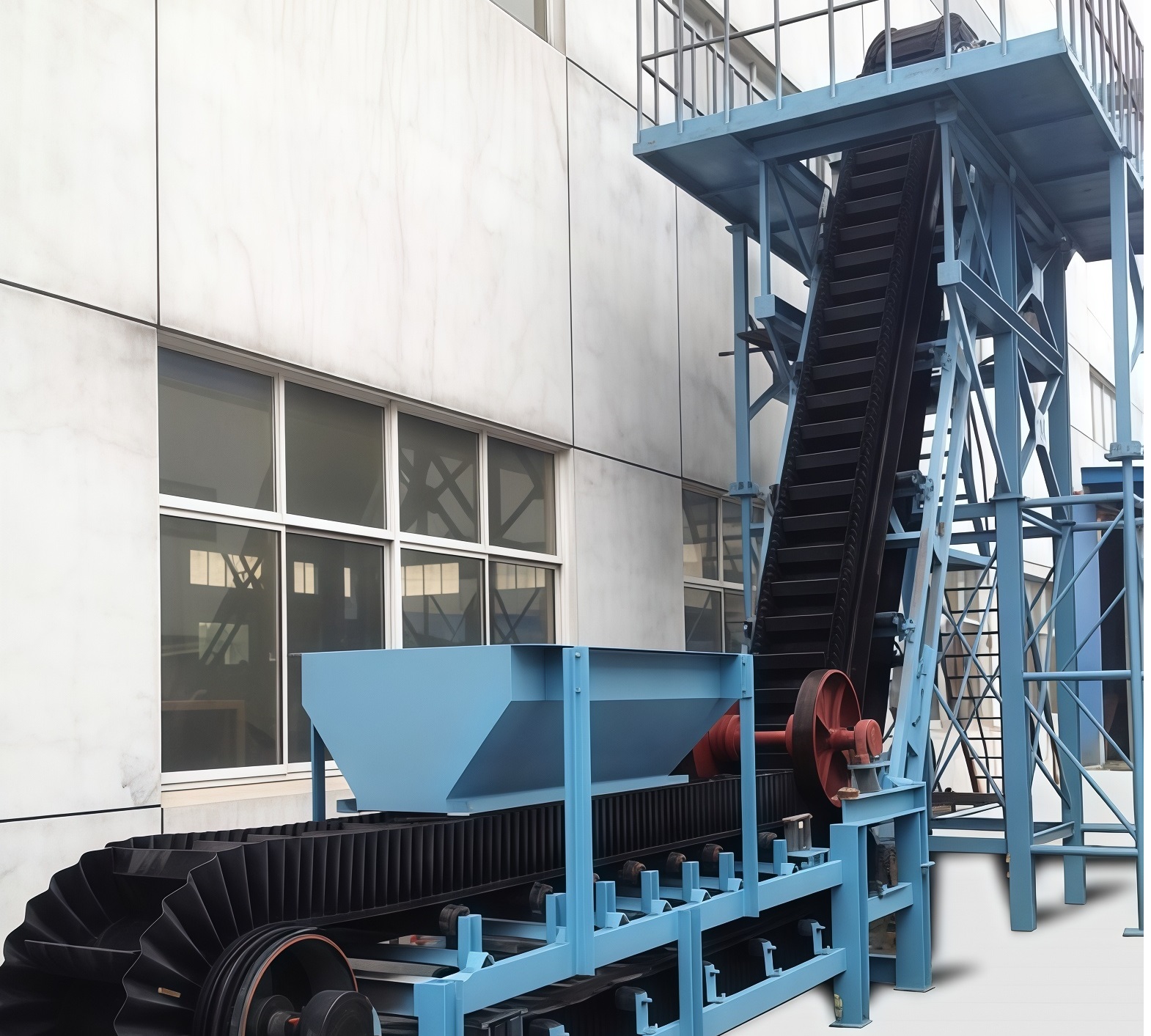

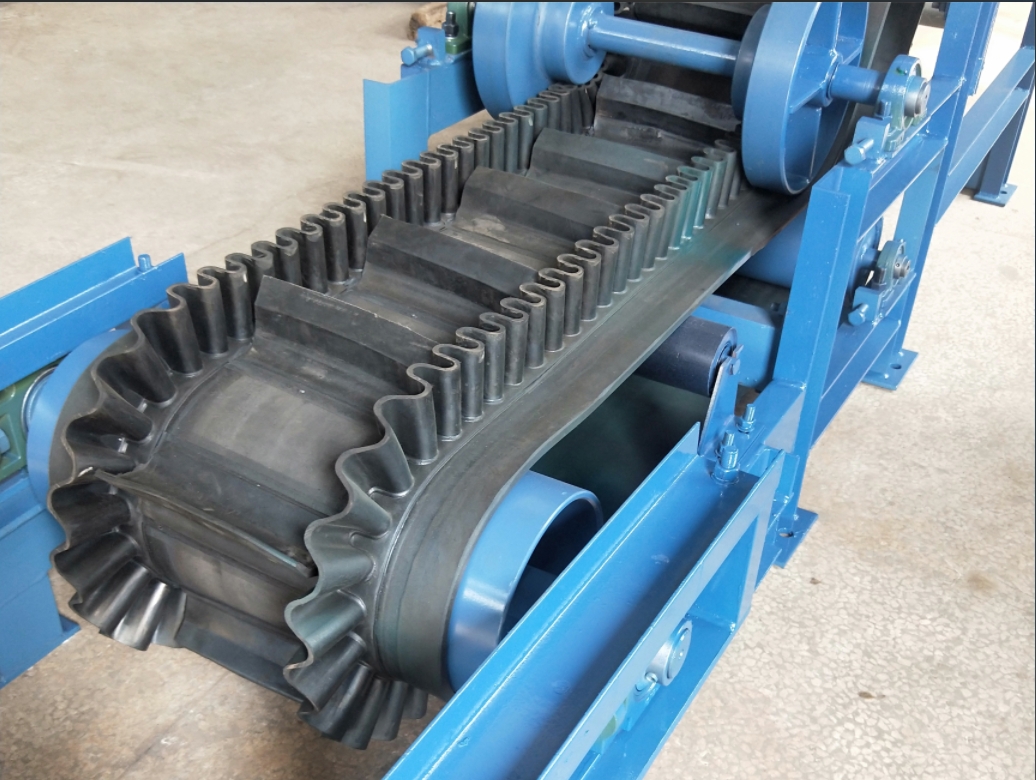

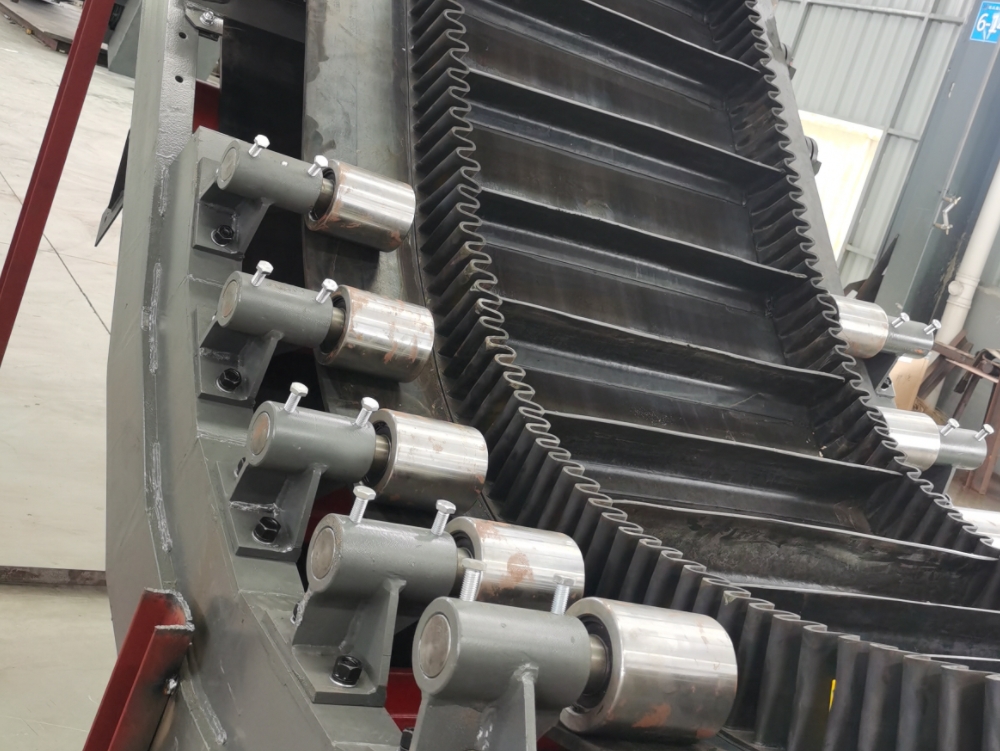

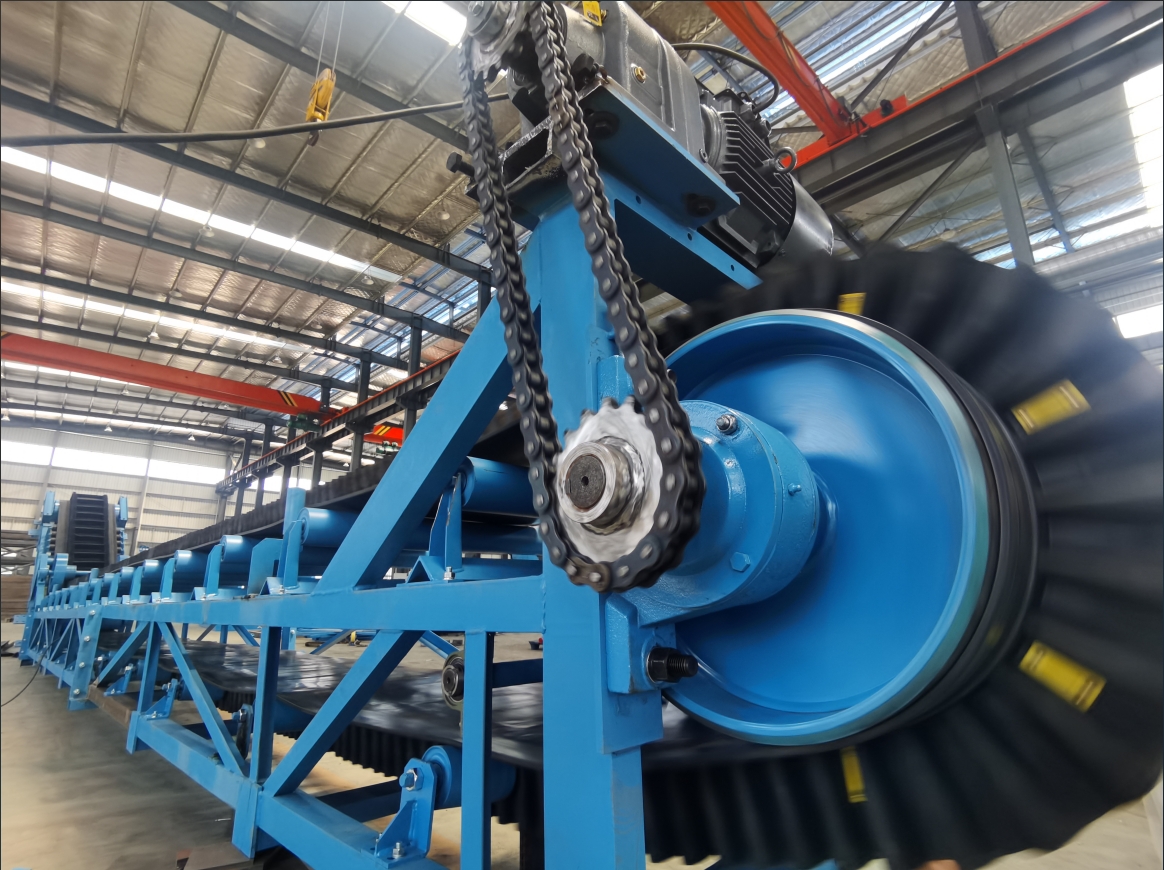

Corrugated Sidewall belt conveyor:

Characteristics of bulk materials such as density, effective angle of internal friction, lump size and shape, are all factors which dictate the maximum incline angle which material can be conveyed by a standard belt conveyor without having it roll or slip backwards on the belt.

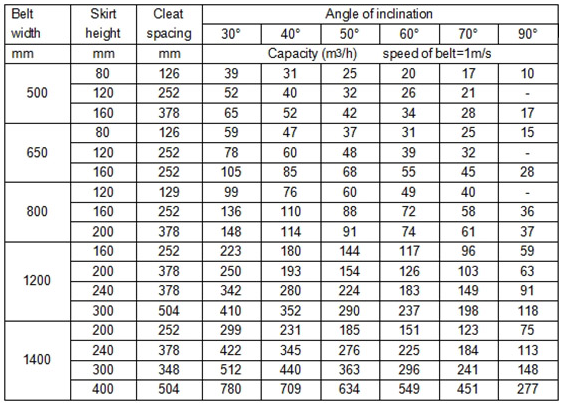

The conveying capacity drops off rapidly as the angle increases. Cleats are available in various sizes, shapes, and configurations with most allowing the belt to run in either a troughed or flat position. Cleated belts are usually restricted to short conveyors where few or no return idlers are needed and either the material does not stick to the surface or where the carryback is acceptable.

Working Principle

The machine is short for "sidewall machine" or "high inclination angle belt conveyor", with the advantages of simple structure, reliable operation, and convenient maintenance of general conveyor, and the features of high inclination angle conveying, compact structure, less land occupation, is the ideal equipment for high inclination angle conveying (even for vertical conveying.

Features:

Corrugated sidewall belt conveyor is one of the most common  used mining equipment, which is widely used in mineral processing, construction materials, silicate and chemical industries.It can reach the conveying angle that can not be achieved by ordinary belt conveyors.   also it can save  a lot of working space and also can   be combined with other Bulk material handling equipment to form a diversified conveying system.
