Features

Conveyor belt cover is also known as rain-proof cover, color steel rain shield, conveyor rain cover, conveyor dust proof cover，Anti Dust Conveyor Hood， belt shield, conveyor protection cover  etc..  It consists of steel plates, hooks, hinges and rivets . The cover plays a great role in the material handling and the environment protection.  When the material is
under transportation, it can reduce the loss and waste of the materials, making the conveyor belt safer and more reliable in the transportation process. In addition, it also extended the service life of the conveyors.

Material and belt widths

The conveyor cover is usually made of color steel plate, stainless steel plate, color coated aluminum alloy plate, galvanized plate , fiberglass ,

steel plate with a thickness of 0.4-1.5mm. Mainly have sea blue, white grey and red color, but can do customized on other colors..

Suitable for belt conveyors with widths of 500/650/800/1000/1200/1400/1600/1800/2000 mm inches Power stations, cement plants, steel plants, chemical plants, ports, docks, mines, coal plants, etc.

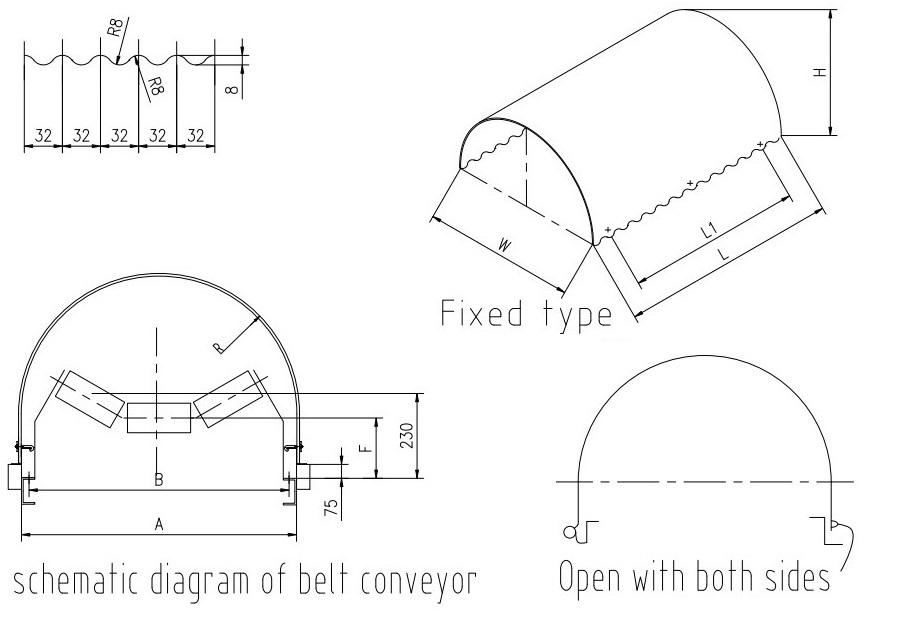

Mounting dimension

The frame of the fixed conveyor cover is connection angle steel or Z-beam steel, which length is equal to the installation length of the conveyor cover. Weld the connection angle steel or Z-beam to the channel or small angle on both sides of the conveyor frame. If the supporting sngle steel is to be installed, first weld the supporting angle steel on both sides of the frame, and then weld the connecting Angle or Z-beam on the supporting angle steel.
