Release date:2025-05-10 Overall View:

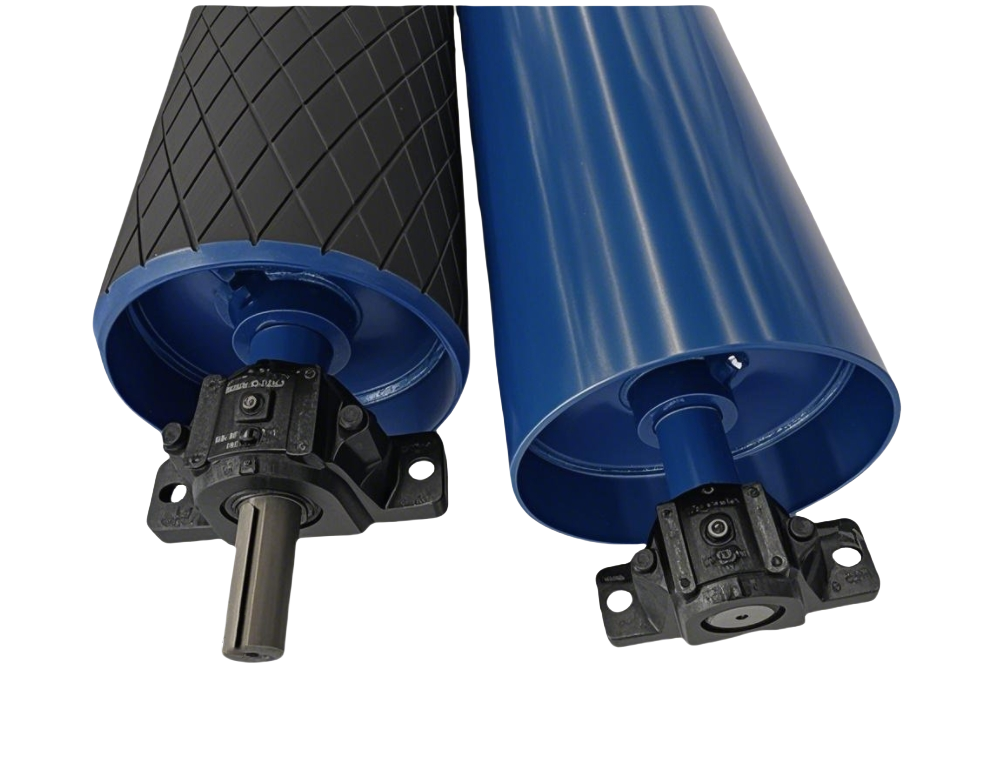

Driving Pulley | Driving Pulley | |||||||||
B.W | Dia. | Bearing | Weight/kg | Drawing No. | B.W | Dia. | Bearing | Weight/kg | Drawing No. | |
B500 | 500 | 22216 | 259 | 50A105Y(Z) | B1200 | 630 | 22224 | 924 | 120A106Y(Z) | |
B650 | 500 | 22216 | 298 | 65A105Y(Z) | 630 | 22228 | 1141 | 120A206Y(Z) | ||
500 | 22220 | 393 | 65A205Y(Z) | 800 | 22224 | 1026 | 120A107Y(Z) | |||
630 | 22216 | 342 | 65A106Y(Z) | 800 | 22228 | 1296 | 120A207Y(Z) | |||
630 | 22220 | 451 | 65A206Y(Z) | 800 | 22232 | 1515 | 120A307Y(Z) | |||
B800 | 500 | 22220 | 454 | 80A105Y(Z) | 800 | 22236 | 1868 | 120A407Y(Z) | ||
630 | 22220 | 521 | 80A106Y(Z) | 800 | 22240 | 2508 | 120A507Y(Z) | |||
630 | 22224 | 749 | 80A206Y(Z) | 1000 | 22224 | 1259 | 120A108Y(Z) | |||
630 | 22228 | 932 | 80A306Y(Z) | 1000 | 22228 | 1430 | 120A208Y(Z) | |||
800 | 22220 | 618 | 80A107Y(Z) | 1000 | 22232 | 1710 | 120A308Y(Z) | |||
800 | 22224 | 868 | 80A207Y(Z) | 1000 | 22236 | 2055 | 120A408Y(Z) | |||
800 | 22228 | 1055 | 80A307Y(Z) | 1000 | 23240 | 2911 | 120A508Y(Z) | |||
800 | 22232 | 1255 | 80A407Y(Z) | 1000 | 23244 | 3311 | 120A608Y(Z) | |||
1000 | 22236 | 1770 | 80A108Y(Z) | 1250 | 23248 | 4265 | 120A109Y(Z) | |||
1250 | 23240 | 2884 | 80A109Y(Z) | 1250 | 24152 | 4569 | 120A209Y(Z) | |||
B1000 | 630 | 22220 | 585 | 100A106Y(Z) | 1400 | 24156 | 5390 | 120A110Y(Z) | ||
630 | 22224 | 823 | 100A206Y(Z) | B1400 | 800 | 22228 | 1359 | 140A107Y(Z) | ||
800 | 22224 | 962 | 100A107Y(Z) | 800 | 22232 | 1614 | 140A207Y(Z) | |||
800 | 22228 | 1165 | 100A207Y(Z) | 800 | 22236 | 1942 | 140A307Y(Z) | |||
800 | 22232 | 1375 | 100A307Y(Z) | 800 | 23240 | 2673 | 140A407Y(Z) | |||
800 | 22236 | 1693 | 100A407Y(Z) | 1000 | 22228 | 1560 | 140A108Y(Z) | |||
1000 | 22224 | 1176 | 100A108Y(Z) | 1000 | 22232 | 1832 | 140A208Y(Z) | |||
1000 | 22228 | 1341 | 100A208Y(Z) | 1000 | 22236 | 2199 | 140A308Y(Z) | |||
1000 | 22232 | 1607 | 100A308Y(Z) | 1000 | 23240 | 3098 | 140A408Y(Z) | |||
1000 | 22236 | 1922 | 100A408Y(Z) | 1000 | 23244 | 3516 | 140A508Y(Z) | |||
1000 | 23240 | 2683 | 100A508Y(Z) | 1250 | 23248 | 4515 | 140A109Y(Z) | |||
1250 | 23244 | 3500 | 100A109Y(Z) | 1250 | 24152 | 4793 | 140A209Y(Z) | |||
1400 | 23248 | 4233 | 100A110Y(Z) | 1400 | 24060 | 6546 | 140A110Y(Z) | |||
