Structural Composition

polyester conveyor belt is stuck together in sequence by many pieces of polyester sailcloth, which is covered by rubber and plastic owning good quality rubber cover up and down and good elasticity.

Features:

With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance, heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.

NN conveyor belt

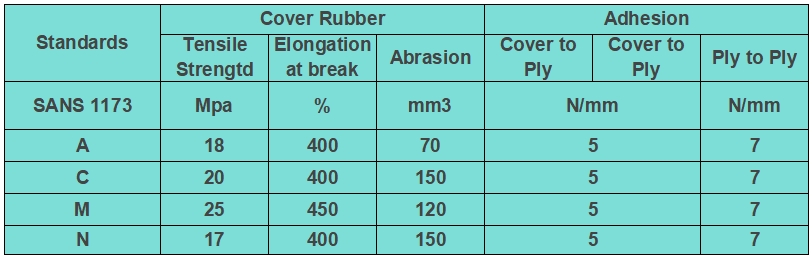

Application: Belt is suitable in chemical industry, electric power, metallurgy, light industry, foodstuff machining and coal mine. Technical standards: The following standards are usually applied:

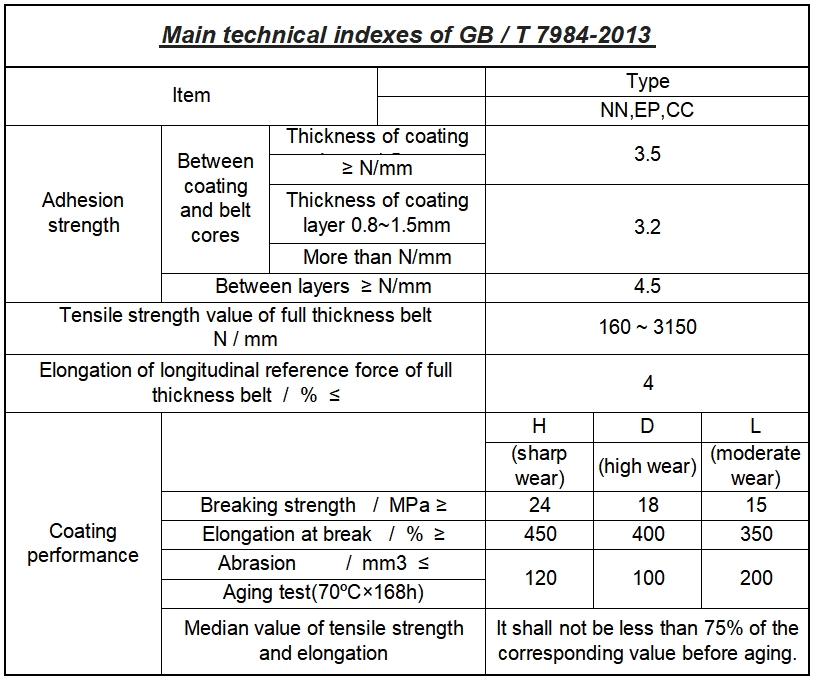

China GB/T7984-2001 Standard

China GB/T10822-2003  Standard

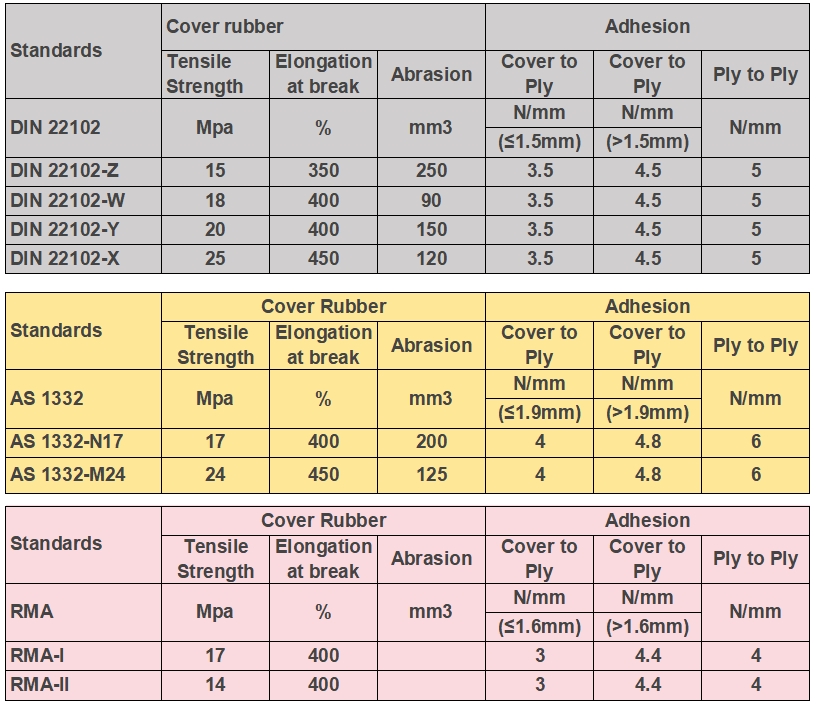

Germany DIN22102 Standard

US RMA Standard

UK EN ISO15236 Standard

Japan JISK6322 Standard

Australia AS1332 Standard

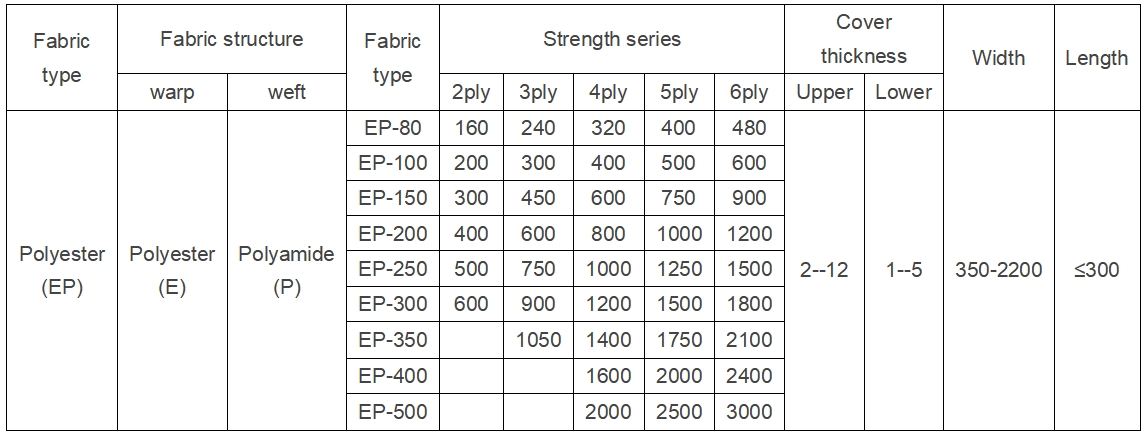

Specification/strength: 100N/mm-3150N/mm.   Width: 300mm-2000mm

Label:
